In today’s data-driven world, monitoring performance is essential. This is true for manufacturing, quality control, and business processes. A great tool for this is an SPC chart, or Statistical Process Control chart. Excel’s strong charting and formula features make it simple to create and manage SPC charts. You don’t need costly software. In this guide, you’ll discover what an SPC chart is. You’ll also learn how to create one in Excel. We’ll look at real-life examples and key benefits. Plus, we’ll answer common questions.
What is an SPC Chart?
An SPC (Statistical Process Control) chart tracks how stable and variable a process is over time. It displays data points along with:
- Center Line (CL): The average or mean
- Upper Control Limit (UCL)
- Lower Control Limit (LCL)
SPC charts are critical in:
- Quality control
- Manufacturing
- Process improvement
- Six Sigma and Lean methodology
They help identify when a process is in control and when corrective actions are required.
How to Create an SPC Chart in Excel (Step-by-Step)
To create an SPC chart in Excel, first calculate the needed statistics. Then, plot these values on a line chart. Here’s how:

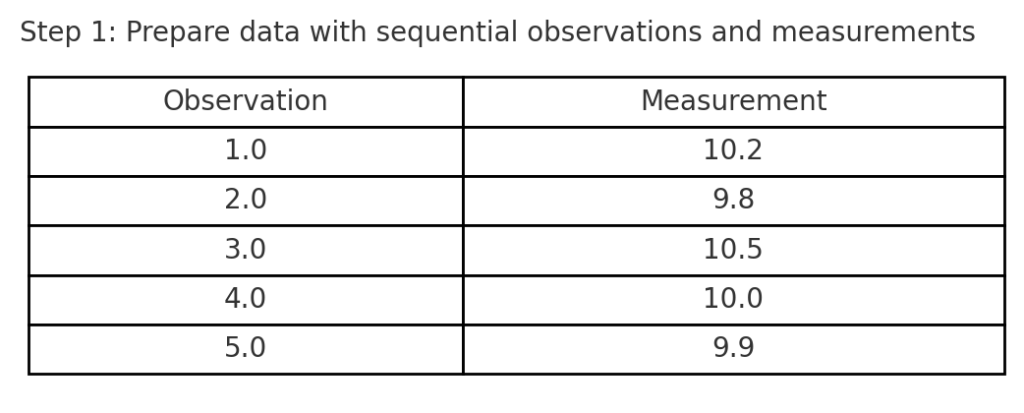

Step 1: Prepare Your Data
Your dataset should have a time or sequence-based column and a column of measurements. Example:
| Observation | Measurement |
| 1 | 10.2 |
| 2 | 9.8 |
| 3 | 10.5 |
| … | … |

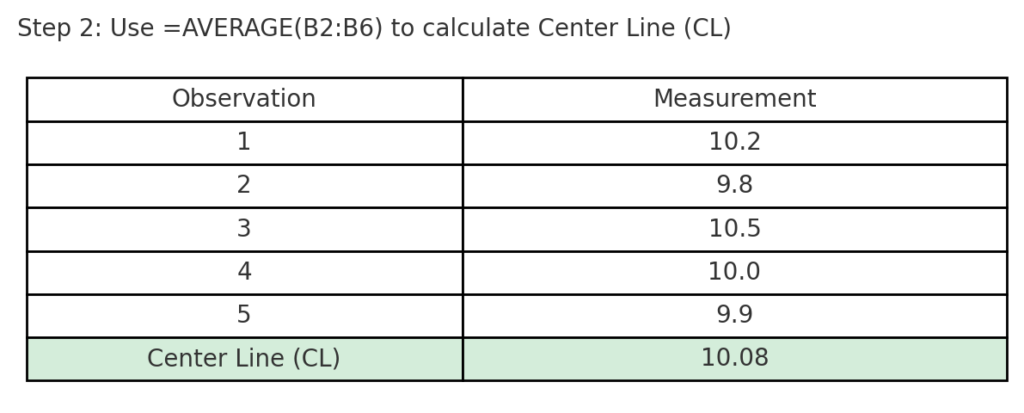

Step 2: Calculate the Mean (Center Line)
Use the AVERAGE function:
=AVERAGE(B2:B21)
This gives the Center Line (CL) for the process.

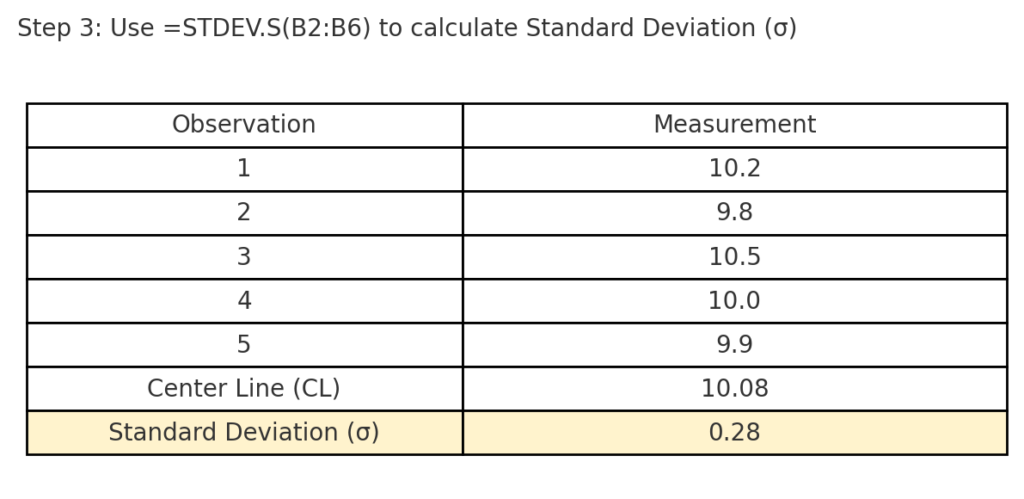

Step 3: Calculate the Standard Deviation (σ)
Use the STDEV.S function:
=STDEV.S(B2:B21)
Step 4: Calculate Control Limits
Control limits are usually set at ±3 standard deviations from the mean.
- UCL = Mean + 3 × σ
- LCL = Mean – 3 × σ
Example formulas:
=CL + 3*σ =CL – 3*σ
You can create a new column for CL, UCL, and LCL repeating for each row to use in charting.

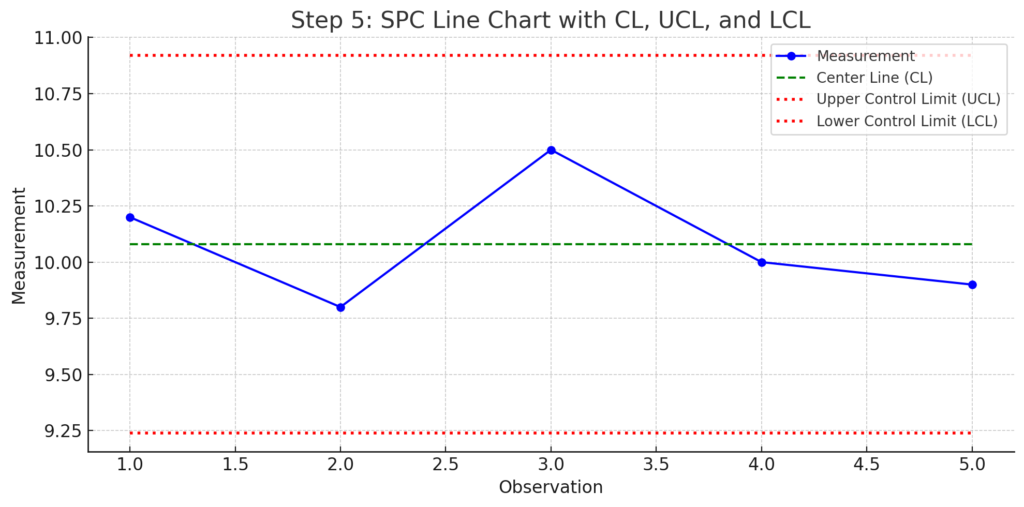

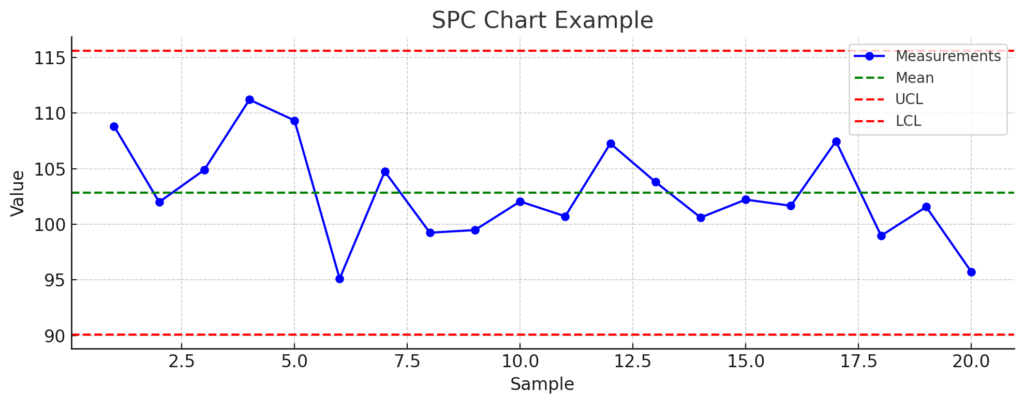

Step 5: Insert a Line Chart
- Select the range including:
- Observation numbers
- Measurements
- CL, UCL, LCL values
- Go to Insert > Line or Area Chart > Line with Markers
- Format each line:
- Measurement = solid line
- CL = dashed line
- UCL/LCL = dotted red lines (optional for visibility)
Step 6: Add Labels and Titles

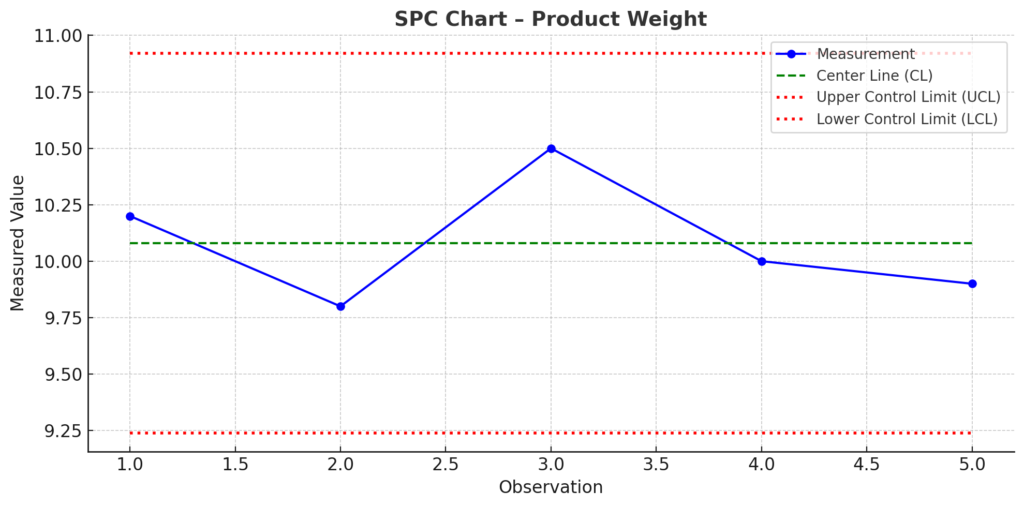

- Add a chart title (e.g., “SPC Chart – Product Weight”)
- Label axes:
- X-axis = Observation
- Y-axis = Measured Value
- Add data labels or callouts if needed for outliers
Examples of SPC Charts in Excel

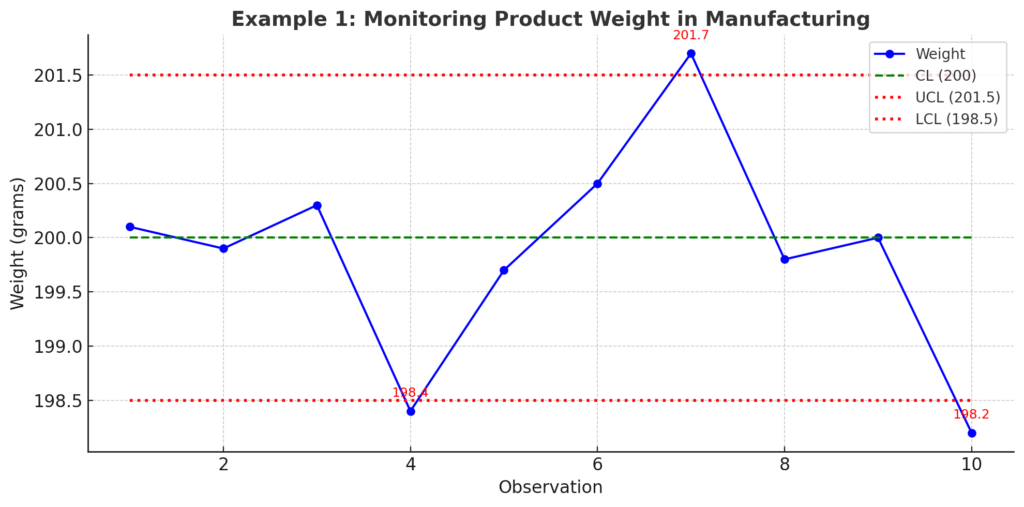

Example 1: Monitoring Product Weight in Manufacturing
| Observation | Weight (grams) |
| 1 | 200.1 |
| 2 | 199.9 |
| … | … |
CL = 200 σ = 0.5 UCL = 201.5 LCL = 198.5
The chart shows weights outside the control limits. This signals a possible problem in production.

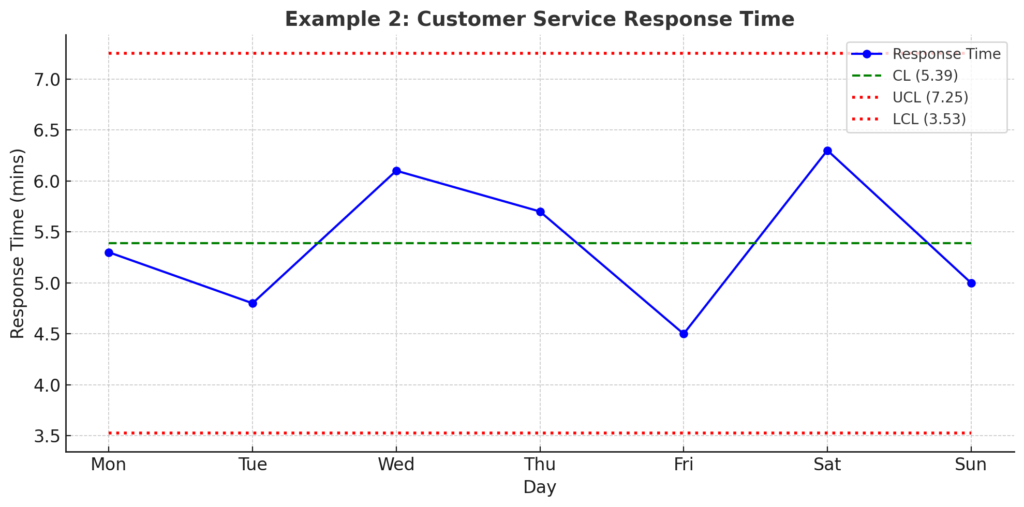

Example 2: Customer Service Response Time
| Day | Response Time (mins) |
| Mon | 5.3 |
| Tue | 4.8 |
An SPC chart here helps monitor consistency in customer service levels.
Benefits of Creating SPC Charts in Excel
Enhances Process Control
SPC charts visually indicate when a process is drifting outside control limits. This real-time monitoring leads to early detection of problems, reducing waste and downtime.
Boosts Product Quality
Companies can spot trends, spikes, or odd patterns. This way, they can act before defects happen. It helps improve product quality and boost customer satisfaction.
Supports Data-Driven Decision Making
With Excel, SPC data can be analyzed, stored, and reported seamlessly. Managers can base decisions on trends and statistical evidence, not assumptions.
Cost-Effective Quality Monitoring
Excel eliminates the need for complex SPC software. Its built-in stats and chart tools give you complete control for free.
Customizable and Scalable
Excel’s SPC charts are:
- Customizable (add alerts, zones, labels)
- Scalable (work with small or large datasets)
- Integrated with other Excel tools (dashboards, macros, Power Query)
This flexibility makes Excel a long-term solution for continuous improvement teams.
Deciles and Percentiles in Excel, Statistics Help
FAQ’s: Creating SPC Charts in Excel
Can I use Excel templates for SPC charts?
Yes. You can create or download Excel templates. These templates have formulas and chart layouts ready for SPC analysis.
What’s the minimum number of observations for an SPC chart?
More data is better. A minimum of 20 to 25 data points is recommended. This helps create meaningful control limits.
What Excel version supports SPC charts?
Excel versions from 2013 and later support line charts, formulas, and conditional formatting. These features are essential for creating SPC charts.
Can I automate SPC charts in Excel?
Yes. You can use:
- Excel Tables (dynamic ranges)
- Macros/VBA
- Power Query for data updates
This ensures automatic refresh of control charts with new data.
What if my data has trends or seasonality?
You might need to use X-bar and R charts or moving average charts. These tools help you track variations that go beyond normal noise.
Conclusion
Creating an SPC chart in Excel gives you a powerful tool for quality control and improvement. Excel offers built-in functions for averaging and standard deviation. It also features dynamic charting. This makes Excel a complete, flexible, and cost-effective tool for monitoring process stability.
