Data visualization plays a crucial role in making insights clearer and more impactful. While Excel offers a wide range of charts, one underrated but powerful option is the dot plot. Dot plots work well for comparing small data sets. They help spot frequency patterns and show distributions clearly and simply. Whether you’re a student, analyst, or business pro, creating a dot plot in Excel can enhance your reports and presentations. In this guide, we’ll explain what a dot plot is. Then, we’ll show you how to create and customize one in Excel. You’ll find step-by-step instructions, real examples, and practical benefits.
What is a Dot Plot?

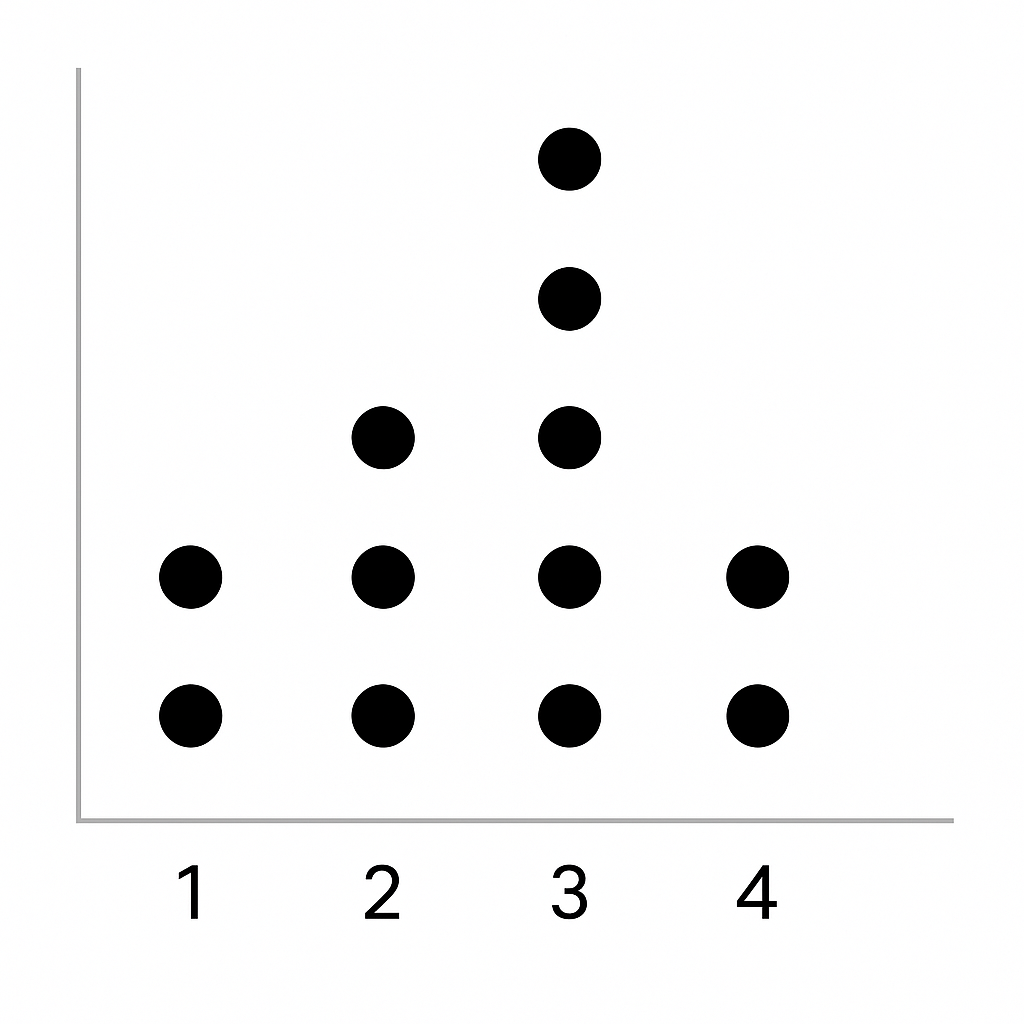

A dot plot is a simple chart. It shows individual data points along an axis. People often use it to display frequency or distribution. Each dot represents one or more occurrences of a value.
Common Uses of Dot Plots:
- Comparing small groups of data
- Showing frequency counts
- Visualizing survey responses
- Displaying discrete, non-continuous variables
Dot plots are easier to understand than bar charts for small datasets. They are especially helpful in education, quality control, and statistical analysis.
How to Make a Dot Plot on Excel?
Excel doesn’t offer a built-in dot plot chart type. But you can create one manually. Just use scatter plots and some simple formatting.
Step 1: Prepare Your Data
Start with your data in two columns:
| Value | Frequency |
| 2 | 3 |
| 4 | 2 |
| 5 | 4 |
You’ll expand this data so that each frequency becomes individual dots.
Step 2: Expand the Data for Plotting
Convert frequency data into repeated values:
| X (Value) |
| 2 |
| 2 |
| 2 |
| 4 |
| 4 |
| 5 |
| 5 |
| 5 |
| 5 |

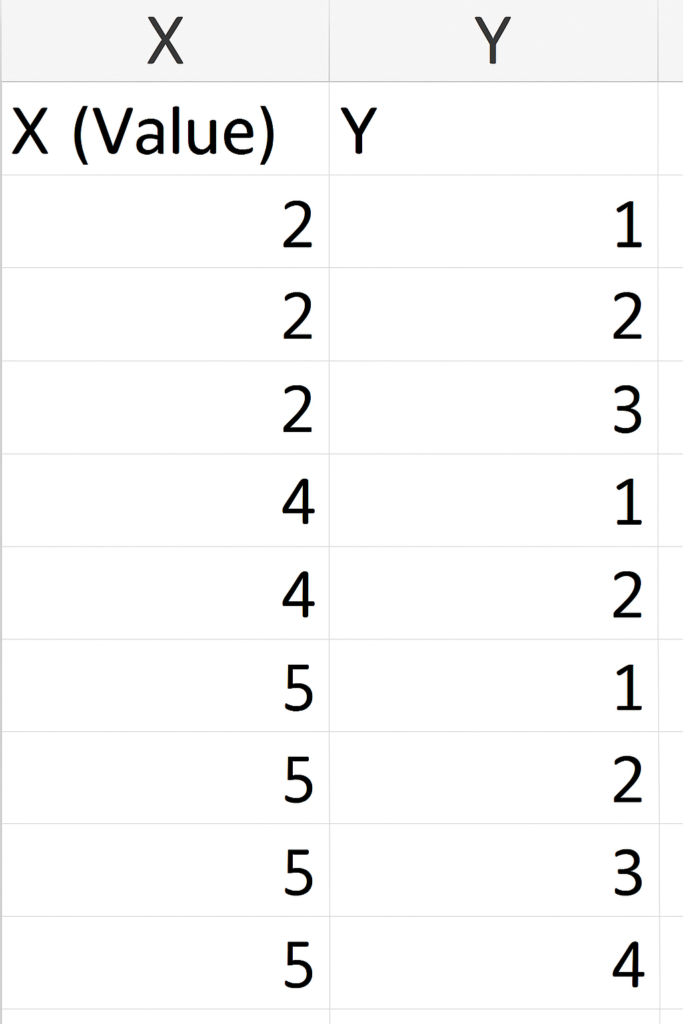

Add a second column with sequence numbers for Y (e.g., 1, 2, 3…).
| X | Y |
| 2 | 1 |
| 2 | 2 |
| 2 | 3 |
| 4 | 1 |
| 4 | 2 |
| 5 | 1 |
| 5 | 2 |
| 5 | 3 |
| 5 | 4 |
Step 3: Insert a Scatter Plot
- Select the X and Y columns
- Go to Insert > Scatter > Scatter with only markers
- Customize chart title, axes, and dot size
- Format axis labels and remove gridlines if needed
You now have a clean and visually clear dot plot in Excel.
Example of a Dot Plot in Excel
Imagine you surveyed 10 students about how many hours they studied per week. Here’s the frequency:
| Hours | Students |
| 2 | 1 |
| 4 | 3 |
| 5 | 5 |
| 6 | 1 |
Benefits of Creating a Dot Plot in Excel
Clear Visualization for Small Data Sets
Dot plots make it easy to interpret data frequency without clutter, making them ideal for surveys or assessments with fewer than 30 data points.
Accurate Representation of Frequency
Each dot corresponds to a real observation, so nothing is abstracted—unlike with bar or pie charts that can sometimes distort frequency visually.
Customizable and Precise
Using Excel allows for full customization—dot colors, labels, and axis scaling—helping you match your branding or report design.
Educational Utility
Dot plots are widely used in classrooms and academic research to teach data distribution concepts because of their simplicity and accuracy.
No Add-ons or Plugins Required
You can create dot plots in Excel using native functions and chart types—no need for external tools or add-ins.
Making a Dot Plot in Microsoft Excel
FAQ’s
Does Excel have a built-in dot plot chart type?
No, but you can easily simulate a dot plot using a scatter chart with manually arranged data.
When should I use a dot plot instead of a bar chart?
Use dot plots for small, discrete datasets. They highlight individual data points better than aggregated values.
Can I use conditional formatting for dot plots in Excel?
You can’t do it directly, but you can format scatter plot markers to show different categories visually.
Is a dot plot better than a histogram?
For small datasets or teaching frequency distributions, dot plots are more intuitive than histograms.
Conclusion
Making a dot plot in Excel is a simple way to clearly show small datasets. Dot plots give you a detailed view of your data. Classroom performance, product reviews, and survey data all benefit from clear presentation. They help you share your findings effectively. Excel is flexible, and you know how to layout data. So, you can create clear dot plots that share insights fast.
