Microsoft Excel is great for calculations, data modeling, and automation. But in complex spreadsheets, it’s easy to lose track of cell dependencies. That’s where “Trace Dependents” comes in. This built-in tool helps you see how data moves in your spreadsheet. You can debug formulas, fix errors, and create better models.

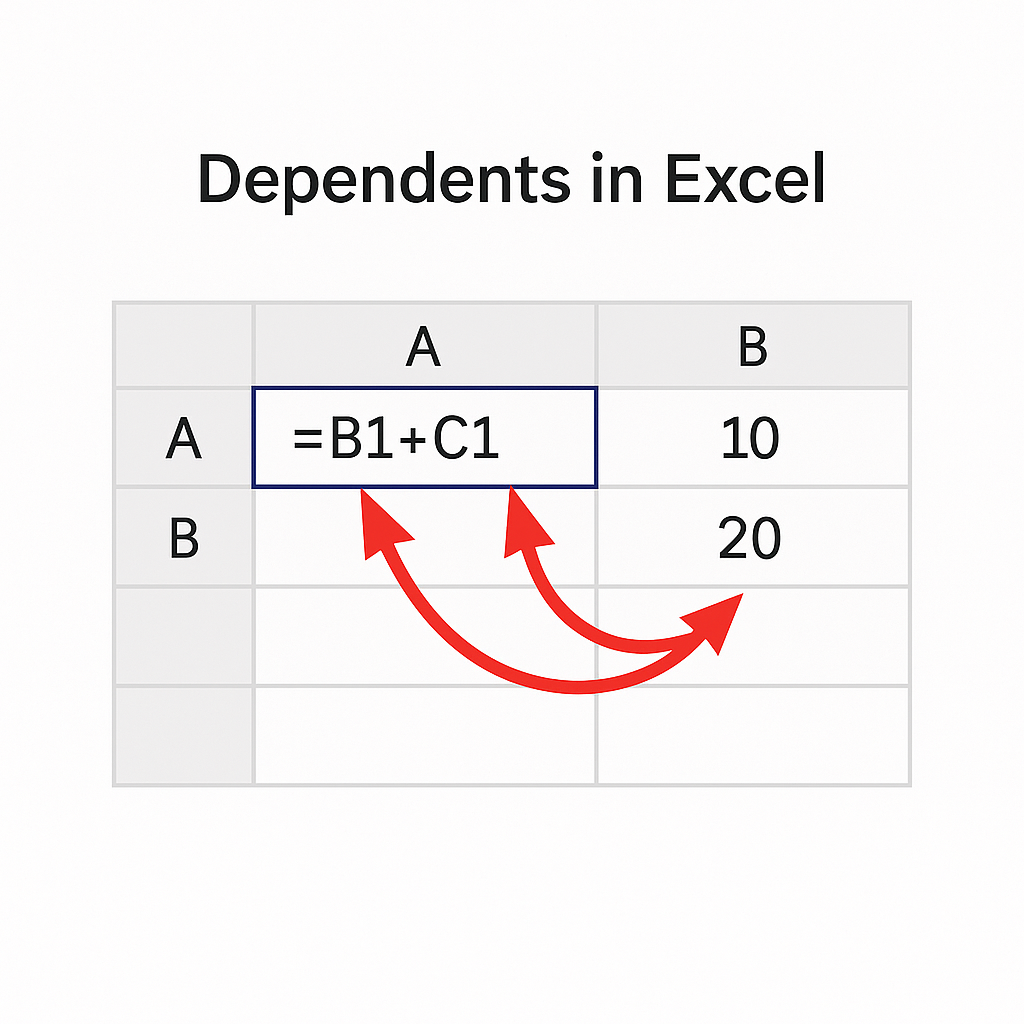

What Are Dependents in Excel?
In Excel, dependents are cells that rely on the value of another cell. If cell A1 is referenced in a formula in cell B1 (like =A1+5), then B1 is a dependent of A1.
Types of Dependents:
- Direct Dependents: Cells that immediately use another cell (e.g., =A1*2)
- Indirect Dependents: Cells that depend on a formula referencing another cell (e.g., =B1 + 3 where B1 = =A1*2)
Why They Matter:
- Help track the flow of calculations
- Useful for troubleshooting errors
- Critical for auditing formulas in large spreadsheets
How to Trace Dependents in Excel?

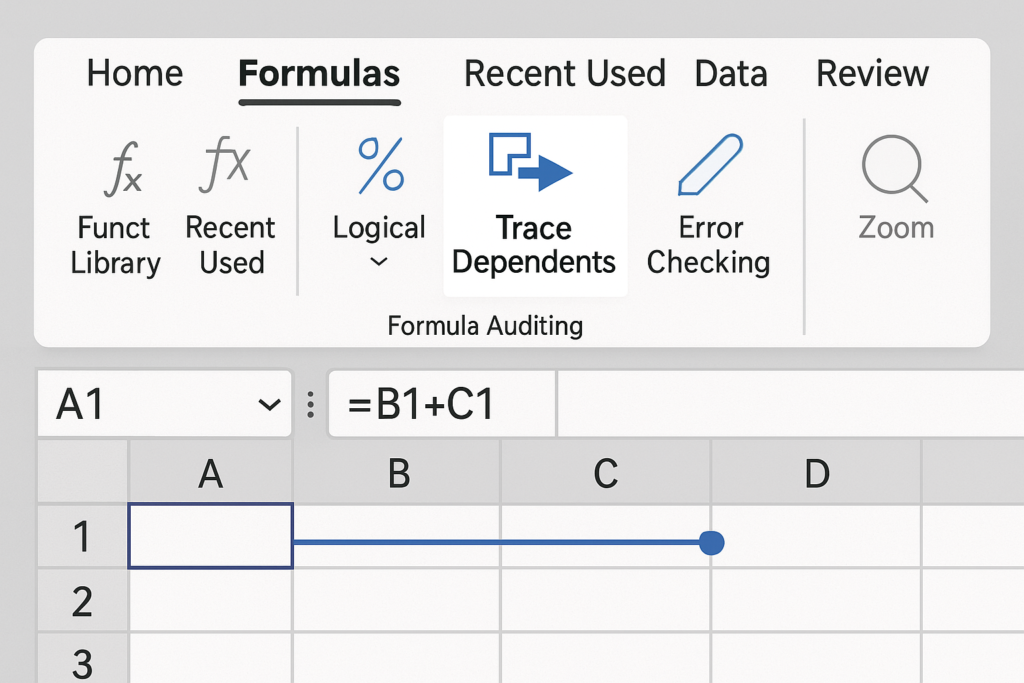

Method 1: Using the Trace Dependents Tool
Steps:
- Click the cell whose dependents you want to trace.
- Go to the Formulas tab on the ribbon.
- Click Trace Dependents (icon with a blue arrow).
- Arrows will point to all dependent cells.
If the dependent cell is on a different sheet, Excel shows a black dashed arrow. This arrow points to a small worksheet icon.

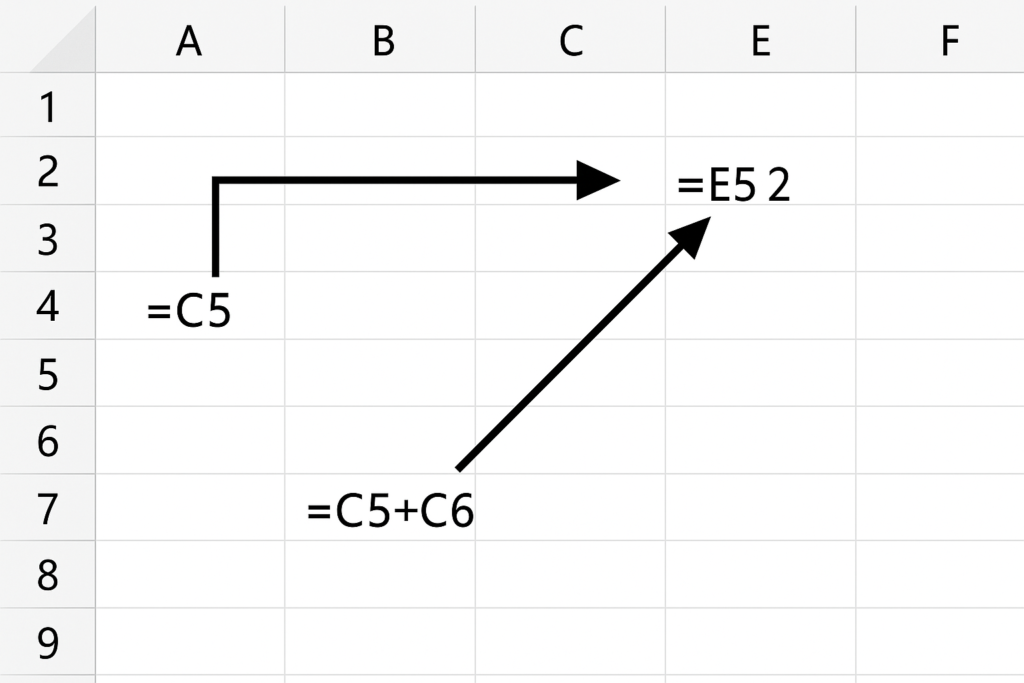

Method 2: Repeat to Trace Further
You can click Trace Dependents multiple times to follow indirect dependencies.
- 1st click: shows direct dependents
- 2nd click: shows further downstream cells

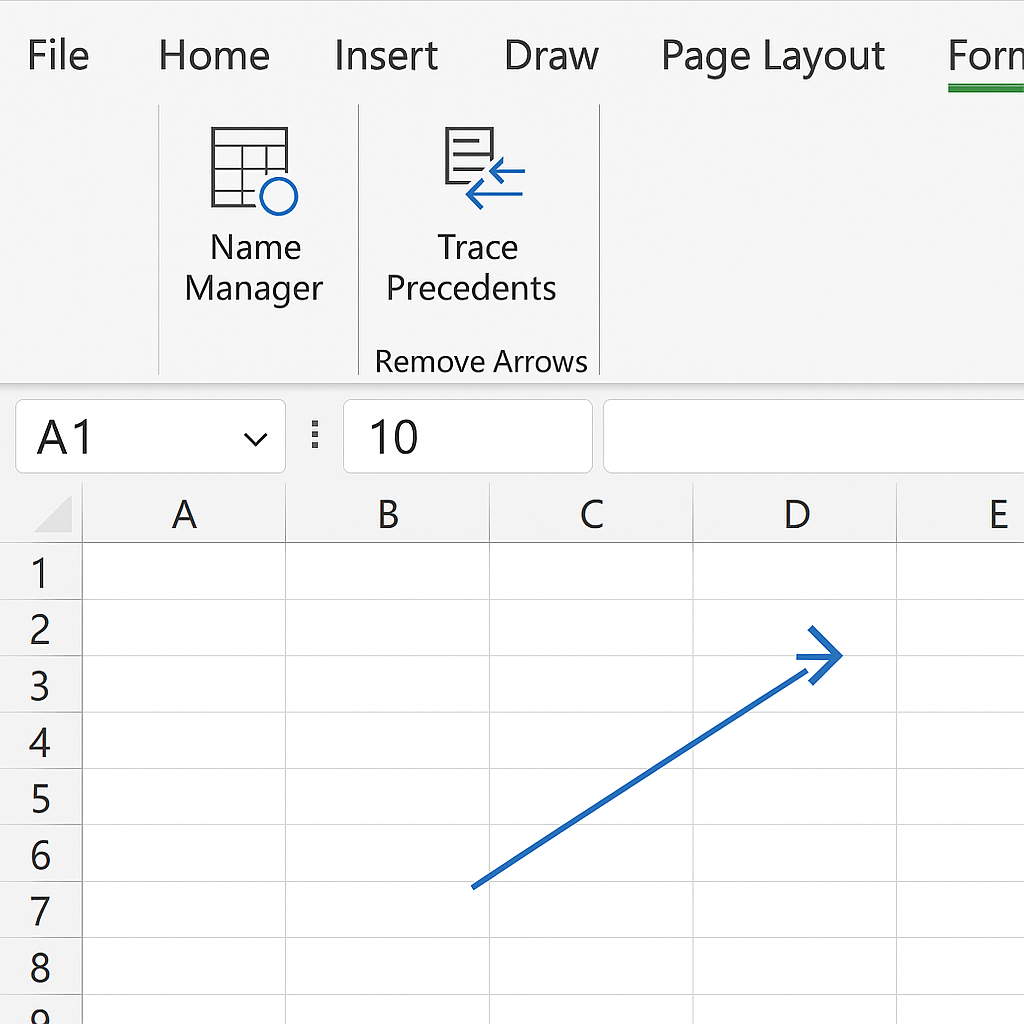

Method 3: Remove Arrows
To clean up your view:
- Go to Formulas > Remove Arrows

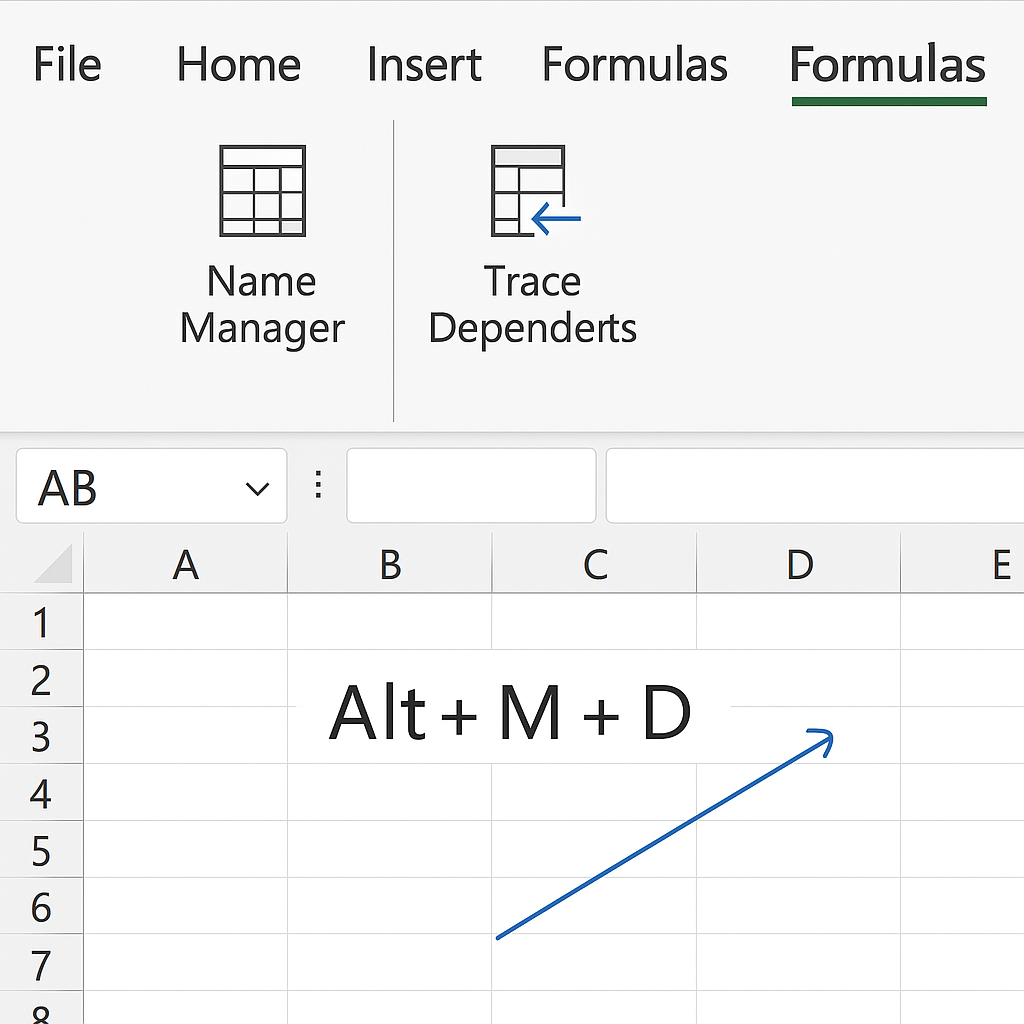

Method 4: Using Keyboard Shortcut
While there’s no dedicated shortcut for “Trace Dependents,” you can press:
Alt + M + D
This is a quick access method that saves time during spreadsheet audits.

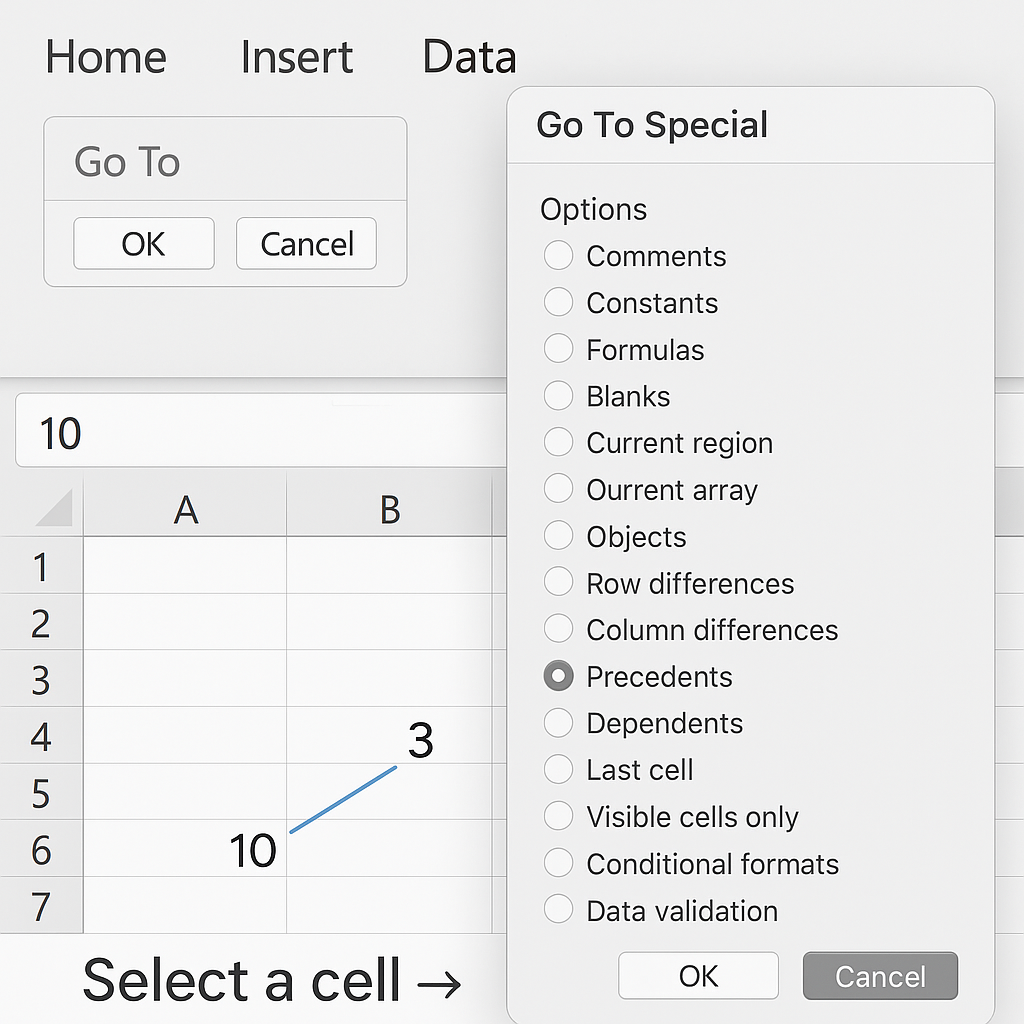

Method 5: Go To Special (Advanced)
To highlight all dependents (without arrows):
- Select a cell → Press F5 → Click Special
- Choose Dependents → Choose Direct only or All levels
- Click OK
Benefits of Tracing Dependents in Excel
Streamlined Error Troubleshooting
When a formula is returning an error (like #REF! or #VALUE!), tracing dependents helps identify which cell caused the breakdown. Imagine a financial model where a total revenue cell suddenly displays an error. By tracing dependents from the base input, you can see exactly where the chain broke. This minimizes time spent hunting for mistakes and ensures accuracy in complex models.
Enhanced Spreadsheet Transparency
In team environments, others may use your data as a base for additional analysis. Tracking dependents shows how data is reused or changed in the file. A budget analyst can use dependents in shared files. This helps confirm that a cost input is linked to multiple summary sheets. It promotes better collaboration and prevents accidental breakages.
Prevents Accidental Deletion or Overwrites
Before you delete a cell, trace its dependents. This way, you won’t break any formulas that rely on it. You may want to delete a section of old inputs. But what if they’re still linked to charts or dashboards? Start by tracing dependents. This way, you won’t compromise other cells. You can then adjust them safely.
Supports Efficient Formula Audits
When you create reports or financial models, make sure the formulas have the correct references. Tracing dependents validates the flow and logic of your spreadsheet. In an investment proposal audit, tracing dependents helps you verify if interest expense figures match the debt schedule. This step is key for financial accuracy and builds stakeholder confidence.
Improves Data Validation and Governance
In corporate settings, data lineage is important. Tracing dependents allows teams to audit how data flows from raw inputs to final outputs. This is very important in areas like healthcare, finance, or compliance. In these fields, data integrity is essential. Tracking dependents helps show changes in base values in reports and dashboards. This keeps governance and accountability strong.
Trace Dependents and Precedents in Excel
FAQ’s About Tracing Dependents in Excel
What’s the difference between precedents and dependents?
- Precedents: Cells a formula depends on
- Dependents: Cells that depend on the current cell
Can I trace dependents across worksheets?
Yes. Excel shows a dashed black arrow pointing to an icon if the dependent cell is on another worksheet. Clicking the icon lets you trace across sheets.
Why is my “Trace Dependents” button grayed out?
- The cell might not have any dependents
- The workbook may be protected or in read-only mode
- You may be in “Edit” mode—press Esc to exit
Can I remove all arrows at once?
Yes. To clear the precedent and dependent lines from your worksheet, go to Formulas and select Remove Arrows.
Is tracing dependents available in Excel Online?
Limited support. Right now, Excel Online can’t trace dependents with visual arrows. You’ll need the desktop version for that feature.
Conclusion
Tracing dependents in Excel is essential for anyone using formulas. This feature is especially helpful in complex or shared spreadsheets. It gives you clarity and control. You can see how your data interacts across sheets and workbooks.
